Technical Form of the External Wall STANDARD

STRATIGRAPHY OF THE PREASSEMBLED WOODEN STRUCTURE



Introduction:
Strips of asphalt placed to protect the walls above.

esternaSTANDARDstiropoor2
Strips of asphalt placed below all the walls.

(click on the image to enlarge)



External wall STANDARD Styropor 10mm
•  Plaster base 2.5 mm with net reinforcement
•  Insulation panel for facades EPSF 100 mm (WLG 040)
•  Slab in reinforced plaster with fibres 15 mm
•  Vertical posts in laminated wood 60x100 mm
•  Distance between the posts 625 mm
•  Mineral thermal insulation 100 mm (WLG 035)
•  PE sheet as vapour barrier
•  Slab in reinforced plaster with fibres 15 mm
•  Total thickness outer wall 237mm
•  U = 0,19 W/m2K



esternaSTANDARDstiropoor

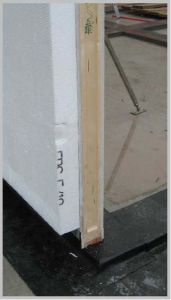

Detail of the outer wall STANDARD
(click on the image to enlarge)
